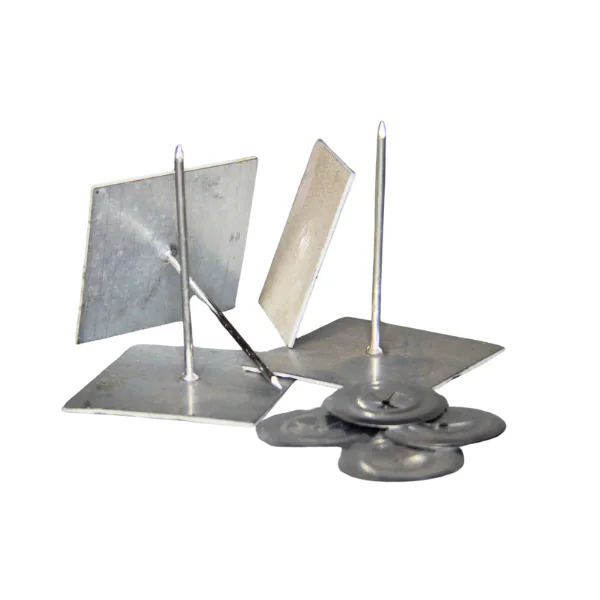

Stick Pins c/w Washer

Stick pins with washers offer a quick and reliable mechanical fixing solution for insulation boards, acoustic linings, or cladding materials against masonry, concrete, ducting, or metal surfaces. Each pin is supplied with a locking washer that secures the material in place once pierced through, forming a stable anchor even before adhesives engage.

Galvanised spring-steel pins resist corrosion and maintain hold under moisture or temperature fluctuations, while the washer distributes load and prevents tear-out, giving long-term stability. Ideal for retrofit installation or new construction when secure, flush mechanical attachment is required without extensive preparation.

Different pin lengths (e.g. 62 mm, 90 mm, 110 mm, 160 mm, 203 mm) accommodate varying insulation or panel thicknesses, enabling proper embedment and load distribution depending on material depth and weight.

Installation Guide:

• Clean substrate to remove dust, oil or debris for best contact.

• Mark fixing positions on insulation or panel material at required spacing.

• Insert stick pin through material and push firmly into substrate (masonry, concrete, metal, or ductwork).

• Place washer over exposed pin end and press or lock washer to seat material.

• For thick insulation, ensure washer fully bears against surface to distribute load.

• If required, trim excess pin length flush to avoid sharp protrusions.
