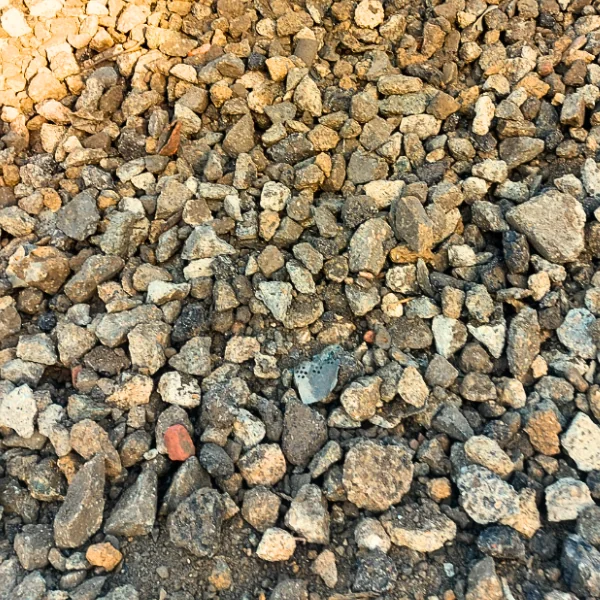

Primary 6F5

Primary 6F5 is an unbound granular aggregate defined under Series 600 of the UK Specification for Highway Works. It contains crushed stone, recycled hardcore, concrete, brick, and similar rock fractions and is tested for compliance with BS EN 13285/BS EN 13242 aggregate standards.

The grading typically ranges from 75mm down to dust with a broadly continuous particle size distribution to aid compaction and support. It is commonly referred to as crusher run or capping aggregate within UK supply chains.

The material is designed to form a strong, load-spreading layer when placed on weak or variable ground. Its coarse grading improves bearing capacity, limits deformation under construction traffic, and provides effective separation between poor subgrade and structural layers above.

Primary 6F5 is used mainly in civil engineering and infrastructure works. Typical applications include capping layers beneath Type 1 or Type 2 sub-base, piling mats, haul roads, car parks, temporary working platforms, and general fill where recycled alternatives are unsuitable or unavailable.

Material Classification and Origin

Primary 6F5 can be quarried or recycled depending on source and specification. If quarried stone (hardstone, limestone, gritstone) is processed to this grading it is a primary aggregate; if it comprises demolition waste it is a recycled aggregate variant.

Primary vs Recycled 6F5 (Key Differences)

While both serve similar roles in groundwork:

• Primary 6F5 may use quarried stone (limestone, hardstone).

• Recycled 6F5 uses construction and demolition material processed off-site.

• Recycled variants often combine concrete, brick, and tarmac planings.

The distinction affects consistency, permitted constituents, and traceability under contract works but not fundamental use as granular fill or sub-base.

Ground Improvement Function and Material Context

Capping materials are used to improve poor ground conditions. They separate weak subgrade from structural layers above and distribute imposed loads.

Primary 6F5 is selected where subgrade strength is low or inconsistent. The coarse structure bridges soft areas and limits rutting during construction phases.

Material selection depends on ground conditions, expected traffic, and specification requirements set out in project documentation.

Grading and Material Classification

This product is supplied as a primary quarried aggregate. The grading is intentionally wide to maximise interlock and load transfer. It is not a surface finish or sub-base material.

• Coarse grading supports ground reinforcement.

• Limited fines reduce pumping from weak subgrades.

• Primary source provides consistent stone strength.

Compaction and Load Distribution

Primary 6F5 compacts under heavy plant to form a stable working layer. Large particles interlock to distribute loads across a wider area. It performs as a foundation improvement rather than a finished layer.

• Large particles bridge weak ground.

• Interlock improves load spread.

• Reduces deformation under construction traffic.

Drainage and Water Interaction

The coarse structure allows water to move through voids within the layer. This reduces water pressure at the subgrade interface. Drainage performance supports ground stability during wet conditions.

• Open structure limits water trapping.

• Reduces softening of underlying soils.

• Suitable for wet ground conditions.

How It Compares to Other Capping Materials

Primary 6F5 differs from sub-base materials by grading and function. It is designed for ground improvement rather than surface support. Compared with finer aggregates, it offers greater bridging capacity.

• 6F5 is coarser than Type 1 sub-base.

• Provides higher load spread on weak ground.

• Not intended as a finished surface.

Type 1 vs 6F5 vs 6F2 (Key Differences)

• Type 1 is a precision sub-base used directly under finished surfaces.

• 6F5 is a heavy-duty foundation and capping layer placed below Type 1.

• 6F2 is a general bulk fill material used at formation level.

Suitability and Usage Limitations

Suitable For

• Capping layers on weak subgrades.

• Ground improvement beneath sub-bases.

• Temporary haul roads and access tracks.

• Working platforms for construction plant.

• Infrastructure and highway schemes.

Not Suitable For

• Finished road or pavement surfaces.

• Concrete production.

• Decorative or landscaping use.

• Fine levelling layers.

• Areas requiring tight surface tolerances.

Application Suitability Reference

Handling and Installation Considerations

Primary 6F5 must be spread in controlled layers and compacted with mechanical rollers or plates. Segregation of fines and oversize should be minimised during placement. Hand trimming and levelling improve placement uniformity.
