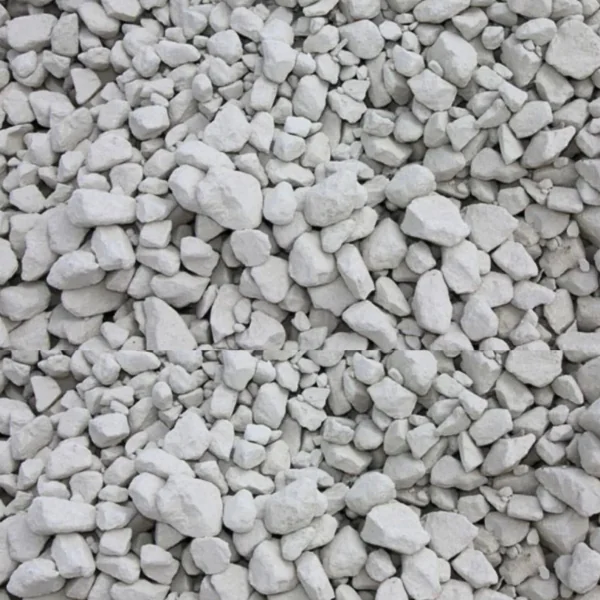

Limestone Ultiflow (SuDS)

Limestone Ultiflow is produced from natural quarried limestone. It is crushed and screened to an open-graded structure with minimal fines to maximise permeability.

The aggregate forms a stable yet free-draining matrix. Large interconnected voids allow rapid water flow while angular particles provide load distribution and resistance to movement.

It is used across domestic, commercial, and civil engineering works. Typical uses include soakaways, drainage trenches, permeable build-ups, and foundation drainage layers.

Why is it known as Ultiflow?

The term Ultiflow is used to describe an aggregate designed for very high water flow performance. It refers to an open-graded structure that allows water to move freely through the material with minimal restriction.

The name reflects the material’s function rather than a specific brand. Ultiflow aggregates are characterised by low fines content and large interconnected voids, which maximise drainage capacity in applications such as soakaways, permeable construction, and sustainable drainage systems.

Key characteristics associated with Ultiflow aggregates

• Open-graded structure promotes rapid water movement.

• Minimal fines reduce clogging and maintain permeability.

• High void content supports water storage and dispersal.

• Used where drainage performance is prioritised over compaction.

Drainage Function and Material Context

Drainage aggregates are used to manage surface and groundwater movement. Open-graded materials reduce water pressure build-up and protect surrounding structures.

Limestone Ultiflow is selected where rapid drainage is required. Its low fines content prevents clogging and maintains long-term permeability.

Material selection depends on drainage design, depth of installation, and imposed loads above the drainage layer.

Grading and Material Classification

This product is supplied as an open-graded limestone aggregate. The grading prioritises void space rather than close compaction.
It is suitable for applications requiring free drainage rather than structural surfacing.

• Open-graded structure supports rapid water flow.

• Minimal fines reduce silting risk.

• Quarried limestone provides consistent durability.

Compaction and Structural Behaviour

Limestone Ultiflow is not designed to compact densely. It settles to form a stable, interlocked structure while retaining voids.
Load is distributed through particle contact rather than bound compaction.

• Angular particles resist lateral movement.

• Void retention maintains drainage performance.

• Stable under overlying layers when designed correctly.

Drainage and Water Interaction

This aggregate allows unrestricted water movement through the layer. It supports groundwater dispersal and drainage continuity.
Performance remains consistent when protected from fines ingress.

• High permeability reduces standing water.

• Open matrix supports soakaway efficiency.

• Suitable for long-term drainage installations.

How It Compares to Standard Limestone Aggregates

Standard limestone aggregates prioritise compaction and load support. Limestone Ultiflow prioritises drainage capacity.
Selection depends on whether structural density or water movement is required.

• Ultiflow provides higher permeability than 20mm limestone.

• Standard limestone provides tighter compaction.

• Ultiflow is not intended as a wearing surface.

Suitability and Usage Limitations

Suitable For

• Soakaways and attenuation systems.

• Foundation and perimeter drainage.

• French drains and trench drainage.

• Permeable paving sub-layers.

• Groundwater management layers.

Not Suitable For

• Structural sub-bases requiring dense compaction.

• Concrete production.

• Pipe bedding requiring close particle contact.

• Decorative surface finishes.

• Areas exposed without a protective overlayer.

Application Suitability Reference
