Fill Sand

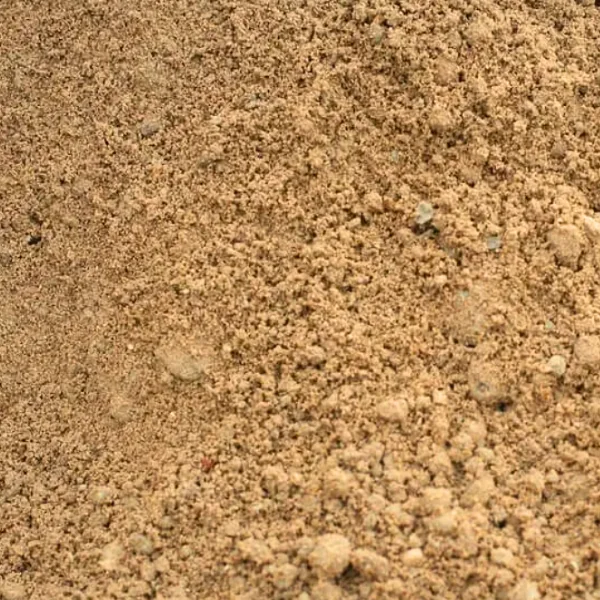

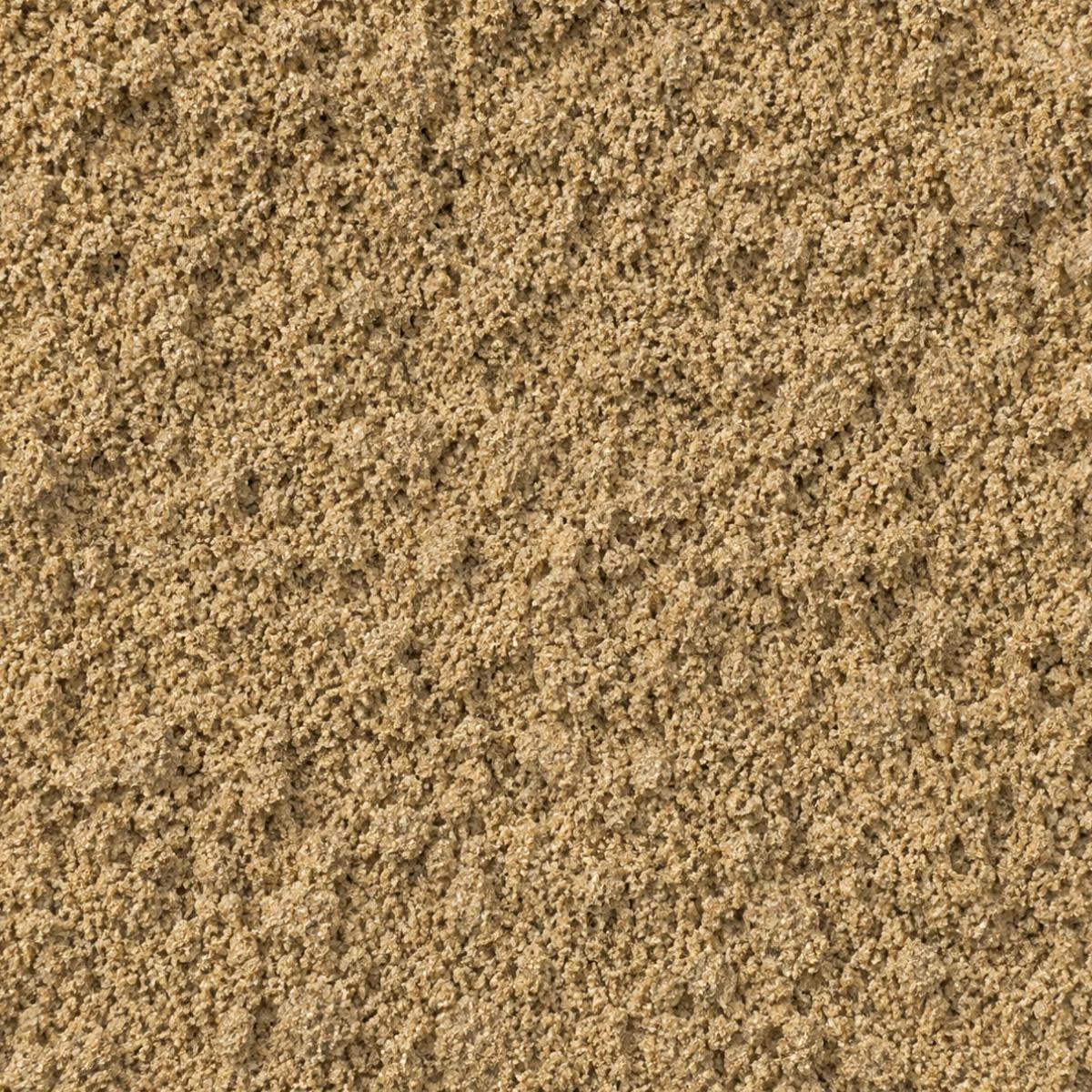

Fill Sand is a natural fine aggregate composed mainly of sand-sized particles with variable fines content. It is unwashed and ungraded compared to concreting or sharp sands. It is commonly referred to as Cable Sand or general fill sand.

It compacts under applied load when placed and consolidated. The presence of fines reduces permeability and increases cohesion. Load distribution is limited compared to graded sub-base materials.

This sand is used in domestic, commercial, and civil groundworks. Typical uses include bulk infill, void filling, trench backfill, and level correction where engineering performance is not specified.

Material Classification and Composition

Fill Sand is classified as a natural primary aggregate. The material is composed of sand-sized particles with varying proportions of silt fines depending on source and extraction method. No controlled grading envelope applies.

Typical Size Ranges

Fine Fill Sand

Fine fill sand generally contains particles from around 0.06 mm up to 2 mm. This finer material is suitable for general backfilling, rendering support, and forming compacted make-up layers where drainage is not a priority.

Coarser Fill Sand

Coarser fill sand typically falls within a 0–4 mm or 0–5 mm range. This material is sometimes referred to as grit sand or sharp sand depending on source. The coarser grading allows improved drainage and is commonly used beneath slabs, for utility bedding, and in applications where reduced moisture retention is required.

Drainage and Water Interaction

Fill Sand exhibits restricted drainage due to the presence of fines. Moisture is retained within the matrix and water movement is slow.

• Low permeability under compaction

• High moisture retention compared to washed sands

• Unsuitable for free draining layers

Compaction and Load Behaviour of Fill Sand

It is reduces voids when compacted but does not achieve engineered density. Load transfer is limited and variable.

• Moderate compaction response when moist

• Low and inconsistent load bearing capacity

• Not suitable for structural support layers

Consistency and Material Variability

Natural variation in colour, particle size distribution, and fines content is expected. Moisture content varies between loads. Performance characteristics are not uniform.

Application Suitability Comparison

Fill Sand suitability depends on performance demand and drainage requirement.

Compliance and Standards Awareness

Fill Sand is supplied as a general fill material. It is not produced to SHW Series 600 or BS EN graded aggregate classifications. Suitability is application dependent and not specification driven.

Suitability and Usage Limitations of Fill Sand

Suitable For:

• Bulk backfilling operations

• Utility trench reinstatement below formation

• Void filling around structures

• General ground level correction

• Non structural infill beneath slabs

Not Suitable For:

• Structural sub-base layers

• Drainage or soakaway systems

• Block paving bedding layers

• Concrete or mortar production

• Load bearing foundation support

Application Suitability Reference

Fill Sand Compared to Other Common Construction Sands

Fill sand is a low grade construction sand used for bulk filling, level raising, and ground make up. It differs from other construction sands which are processed and graded for specific performance requirements rather than mass fill use.
