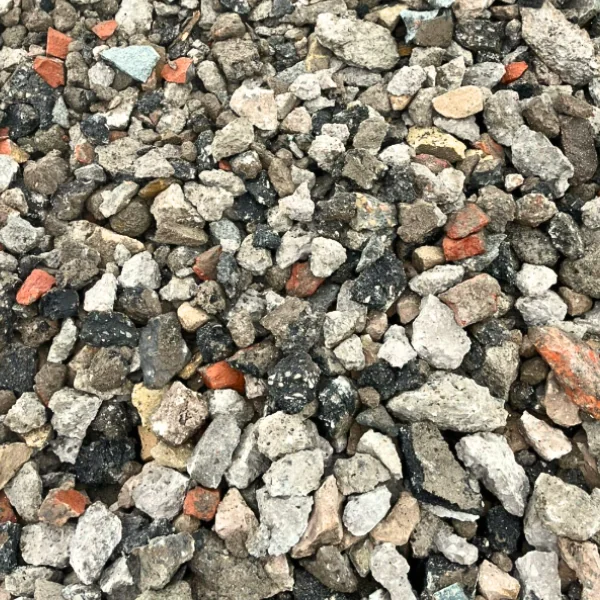

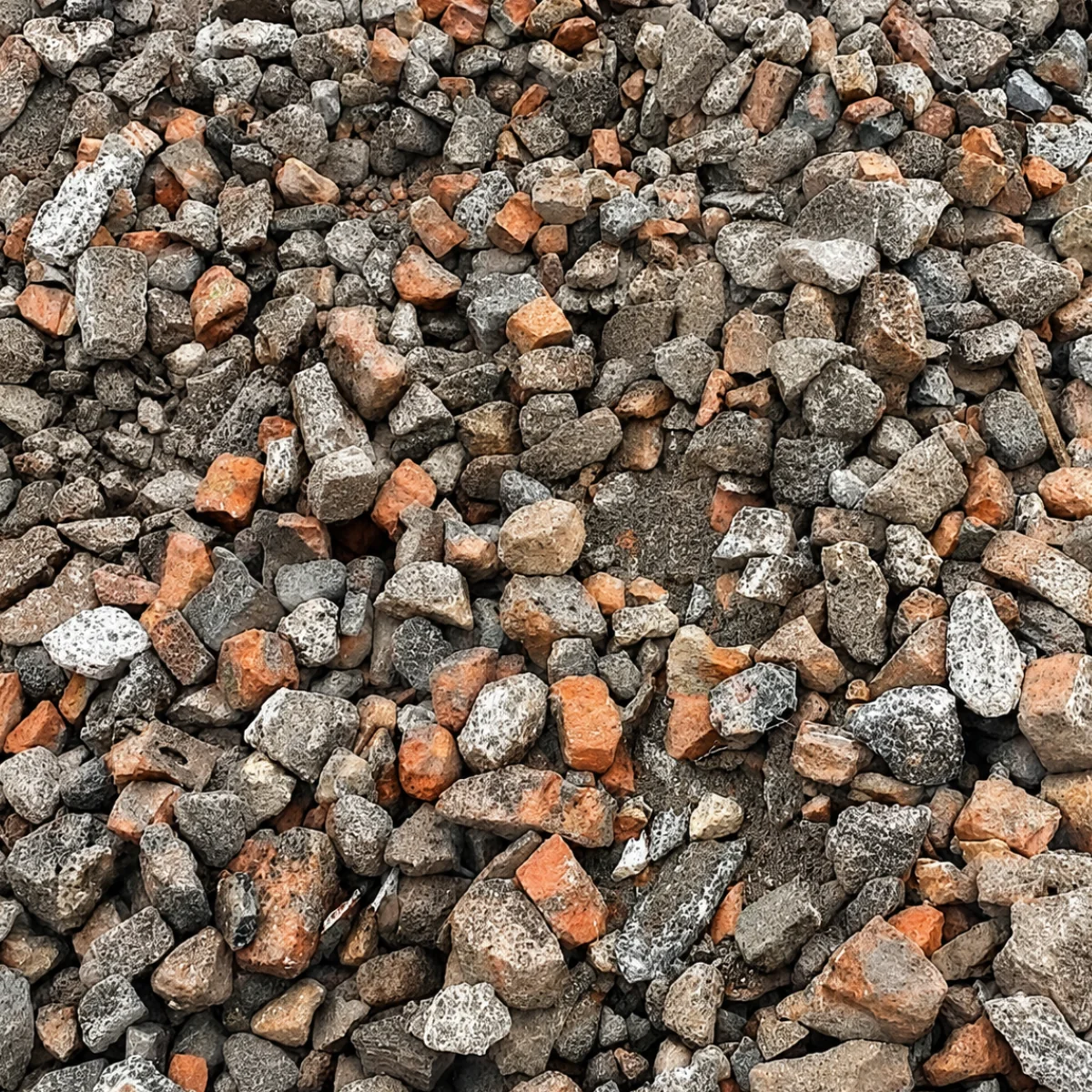

6F5 Capping (Recycled 6F5)

Recycled 6F5 crushed concrete is a sustainable recycled capping aggregate typically produced from crushed concrete, brick, and asphalt. It conforms to the 6F5 grading under SHW Series 600 for earthworks and capping layers.

The material provides bulk, mass, and load spreading rather than tight interlock. It works by reducing stress on the subgrade and creating a stable working platform during early construction stages.

Recycled 6F5 is not a finished surface material. It is designed for load distribution, not surface tolerance. It is commonly used on domestic driveways, commercial yards, and civil engineering projects. Typical uses include capping layers, haul roads, and temporary access over poor ground conditions.

Grading and Classification

Recycled 6F5 is defined as a wide graded capping material. It contains large particles and a higher fines content than Type 1.

• SHW Series 600 recognised capping grade.

• Broad particle size distribution supports load spread.

• Recycled origin allows variable composition.

Specification Control and Acceptance

Recycled 6F5 is supplied in accordance with recognised UK earthworks classifications; however, final acceptance depends on project-specific requirements.

• Use is subject to contract specification and works information.

• Material suitability may require approval by the project engineer or client.

• Source consistency and grading tolerance vary with recycled supply.

Final suitability is determined by the intended structural role within the ground build-up.

Material Composition and Source

This aggregate is manufactured from recycled construction and demolition waste. Source materials influence particle shape and fines proportion.

• Crushed concrete provides bulk strength.

• Brick and asphalt add grading variability.

• Recycled fines improve ground binding.

Compaction Behaviour

6F5 compacts under heavy plant to form a dense capping layer. Moisture content strongly affects compaction performance.

• Requires mechanical compaction for stability.

• Fines bind when correctly conditioned.

• Over wet material reduces bearing capacity.

Load Distribution Performance

The primary function of 6F5 is to spread imposed loads across weak subgrades. It protects underlying soils from deformation.

• High thickness improves load dispersion.

• Large particles resist punching failure.

• Reduces subgrade rutting under traffic.

Drainage Characteristics

Recycled 6F5 is not a free draining aggregate. Fines content limits water movement through the layer.

• Restricted permeability compared to Type 1.

• Suitable where drainage is not critical.

• Requires separation from drainage layers.

Separation and Interface Control

Where fines content is high or subgrade conditions are weak, a separation geotextile may be used to prevent migration of fines between layers and to maintain layer performance.

Typical Layer Thickness

6F5 is placed in thicker layers than sub base materials. Thickness depends on ground conditions and loading.

• Commonly laid 150–600 mm thick.

• Increased depth for very soft ground.

• Used below structural sub base layers.

Recycled 6F5 is typically used at sub-formation level and is normally overlaid with a structural sub-base such as MOT Type 1 or equivalent prior to surfacing.

Differences Compared to Other Aggregates

Recycled 6F5 differs from other common UK aggregates in grading and function.

• Coarser than Type 1 sub base.

• Higher fines than 6F2 capping.

• Designed for load spread, not finish tolerance.

Suitability and Usage Limitations

Suitable For

• Capping layers over weak subgrades.

• Temporary haul roads and access tracks.

• Ground improvement beneath pavements.

• Working platforms for construction plant.

• Bulk fill where compaction is required.

Not Suitable For

• Final wearing surfaces.

• Drainage layers or soakaways.

• Thin applications requiring tight tolerance.

• Decorative or exposed finishes.

• Areas requiring certified permeability.

Final performance depends on ground conditions and specification requirements.

Application Suitability Reference

Supply and Delivery

Recycled 6F5 is typically supplied loose by tipper vehicle and sold by weight.

• Supplied in bulk for mechanical placement.

• Appearance and composition may vary between loads.

• Coverage depends on layer thickness and compaction method.
