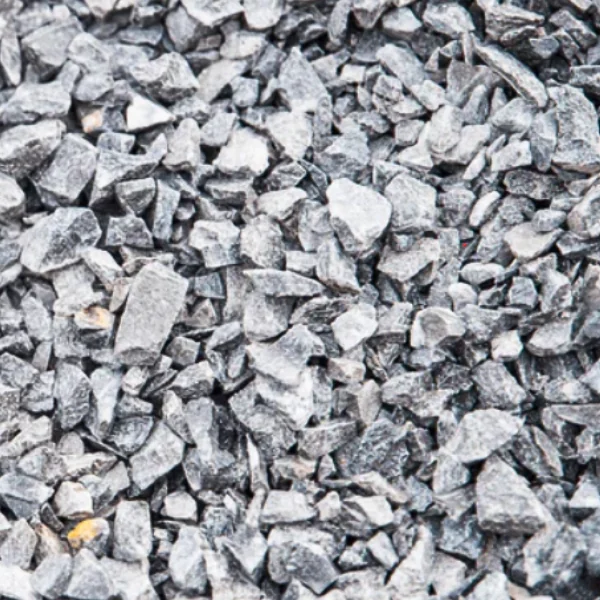

20mm Clean Limestone Chippings

Limestone 20mm is a crushed natural limestone aggregate with a nominal grading of 10–20mm. The material presents angular particles with a light grey to buff appearance. It is produced in accordance with BS EN 13242 for unbound and hydraulically bound materials. This material is also known as 20mm limestone. The grading supports structural interlock and stable ground performance.

The material addresses requirements where ground strength and load distribution are required without excessive fines. Angular faces allow stones to lock together under compaction. The open grading permits controlled water movement while maintaining stability. These properties support use beneath trafficked and structural layers.

Limestone 20mm is used across domestic, commercial, and civil construction environments. Typical applications include groundworks, access routes, and foundation support layers. The material performs consistently across small and large scale projects.

Physical and Grading Behaviour:

The grading range of limestone 20mm falls within the 10–20mm size fraction. Particle distribution remains consistent within this envelope. Limited fines content supports clean performance. The grading enables predictable void structure.

Angular particle shape promotes mechanical interlock. Stones resist lateral movement under load. This behaviour supports stability in unbound layers. Performance remains consistent when confined.

Natural limestone hardness supports resistance to crushing. Particle breakdown remains limited under normal loading. The material retains grading integrity over time. This supports long term ground performance.

Structural and Load Behaviour:

Limestone 20mm provides reliable load transfer when placed within confined layers. Compacted particles distribute imposed loads evenly. The material supports trafficked surfaces and structural build ups. Performance remains dependent on underlying ground conditions.

The aggregate is suitable for non structural and structural ground layers. It performs effectively beneath slabs, pavements, and bound finishes. The stone structure resists deformation under static loads. Load performance aligns with general fill and sub base functions.

Under repeated loading, the stone maintains shape and interlock. Particle crushing remains minimal. This supports durability in commercial and civil environments. Performance depends on correct layer thickness design.

Limestone Aggregate Size Context

Limestone aggregates are produced in multiple size ranges to suit different construction functions. Each size performs a distinct role based on particle size, compaction behaviour, and drainage capacity.

• 10mm limestone is used where close contact, fine compaction, and smooth finish are required.

• 20mm limestone provides structural support with improved drainage performance.

• 40mm limestone is used for bulk fill, deep drainage layers, and heavy-duty groundworks.

Selection is based on specification requirements, load conditions, and drainage design rather than appearance.

Water and Environmental Behaviour:

The clean grading allows controlled drainage through the aggregate layer. Water moves freely between particles. This reduces saturation risk beneath overlying layers. Drainage supports ground stability.

Limestone does not retain excessive surface water. Moisture presence does not significantly alter particle shape. Performance remains stable in variable weather conditions. Frost action impact remains limited when drainage is maintained.

The material is suitable for use in exposed ground environments. It performs reliably in external conditions. Natural composition aligns with standard construction use. No chemical treatment is applied.

Appearance and Consistency:

Limestone 20mm typically appears light grey to buff in colour. Shade variation occurs between sources. Surface texture remains rough and angular. Visual consistency supports uniform placement.

Natural variation in particle shape is expected. Size distribution remains within grading tolerance. Minor colour variation does not affect performance. Consistency aligns with primary quarried aggregates.

Across multiple deliveries, appearance may vary slightly. Geological source influences tone and texture. Functional performance remains unchanged. Visual differences should be anticipated.

Compaction and Load Distribution

The aggregate compacts to a stable, dense layer under light mechanical effort. Interlocking angular faces distribute loads across the surface and sub-layers.

• Stabilises surface for vehicle and pedestrian loads.

• Angular shape reduces lateral movement.

• Large size supports dynamic load transfer.

Concrete and Bedding Performance

In concrete mixes, 20mm limestone provides a coarse aggregate component that improves structural strength. It supports the concrete matrix and helps resist shrinkage in hardened material.

• Coarse aggregate enhances concrete structural properties.

• Reduces shrinkage in concrete when used to specification.

• Bedding uses uniform contact around pipes and utilities.

Suitability and Usage Limitations:

Suitable For:
• Load bearing sub base layers
• Drainage layers and soakaway surrounds
• Access roads and haul routes
• Foundation support layers
• Commercial yard construction

Not Suitable For:
• Decorative surface finishes
• Thin levelling layers
• Internal flooring applications
• Precision bedding layers
• Bound concrete aggregate replacement

Application Suitability Reference:
