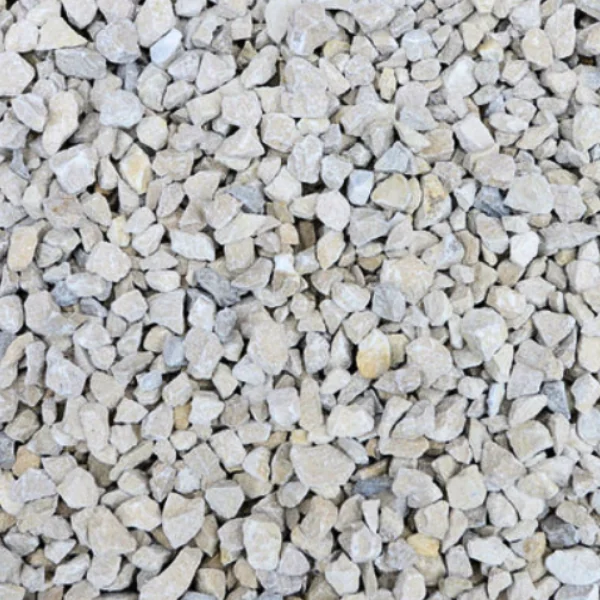

10mm Limestone Chippings

Limestone 10mm is produced from natural limestone rock. It is crushed and mechanically screened to a single-sized 10mm grading, typically within a 4-10mm or 6-10mm range.

The aggregate compacts to form a firm, even layer. Angular to sub-angular particles interlock to provide stability while allowing limited water movement through voids.

It is widely used across domestic, commercial, and civil works. Typical uses include pipe bedding, fine concrete mixes, drainage layers, and light-duty landscaping surfaces.

Pipe Bedding Function and Material Context

Pipe bedding is the layer of material placed beneath and around buried pipework. It provides uniform support, maintains line and level, and protects pipes from structural damage during service life.

Correct bedding prevents point loading caused by uneven ground or oversized particles. Even load distribution reduces cracking risk in rigid pipes and deformation in flexible systems.

Material selection depends on pipe type, ground conditions, and imposed loads such as traffic or structures.

Grading and Material Classification

This product is supplied as a quarried limestone aggregate. The grading focuses on a consistent small particle size for close contact and even support. It is suitable for applications where a fine, stable aggregate is specified.

• Nominal 10mm grading supports uniform bedding.

• Quarried source provides consistent material quality.

• Angular particles improve interlock and stability.

Compaction and Load Distribution

Limestone 10mm compacts effectively under light mechanical or manual effort. It forms a dense, level layer beneath and around services. Uniform grading supports even load transfer.

• Angular faces resist lateral movement.

• Close grading limits void formation.

• Compacted layer reduces post-installation settlement.

Drainage and Water Interaction

The aggregate allows controlled water movement through inter-particle voids. It does not retain excessive moisture when correctly compacted. This supports long-term stability in bedding and surfacing layers.

• Moderate permeability avoids water trapping.

• Consistent grading supports predictable drainage.

• Suitable for combined support and drainage roles.

Concrete and Bedding Performance

When used in fine concrete mixes, the consistent 10mm size supports close packing and helps reduce voids in the hardened matrix. As pipe bedding, it provides uniform contact around pipes and ducts.

• Improves concrete density in fine mixes.

• Supports even pipe barrel contact.

• Assists load distribution around services.

How It Compares to Other Bedding Materials

Pipe bedding materials differ in grading, particle shape, compaction behaviour, and drainage performance. Selection depends on pipe type, ground conditions, and imposed loads.

• Sand offers uniform contact but limited structural restraint.

• Rounded gravels drain freely but resist compaction.

• Larger clean stones provide drainage but limited pipe contact.

• 10mm limestone balances support, compaction, and drainage.

Suitability and Usage Limitations

Suitable For

• Pipe bedding and surround material.

• Fine concrete mixes where 10mm stone is specified.

• Light-duty paths and access routes.

• Garden borders and general landscaping.

• Localised drainage layers where grading permits.

Not Suitable For

• Heavy-duty or HGV trafficked surfaces.

• High-spec filtration or soakaway systems.

• Applications requiring uniform decorative colour.

• Environments requiring non-calcareous stone.

Application Suitability Reference

Material Compatibility

Limestone 10mm is compatible with common UK construction materials used in drainage, concrete, and landscaping works.

• Compatible with plastic, clay, and concrete pipes.

• Suitable above Type 1 sub-bases in light-duty builds.

• Compatible with standard concrete binders.

• Suitable beneath block, slab, and paved surfaces where specified.
