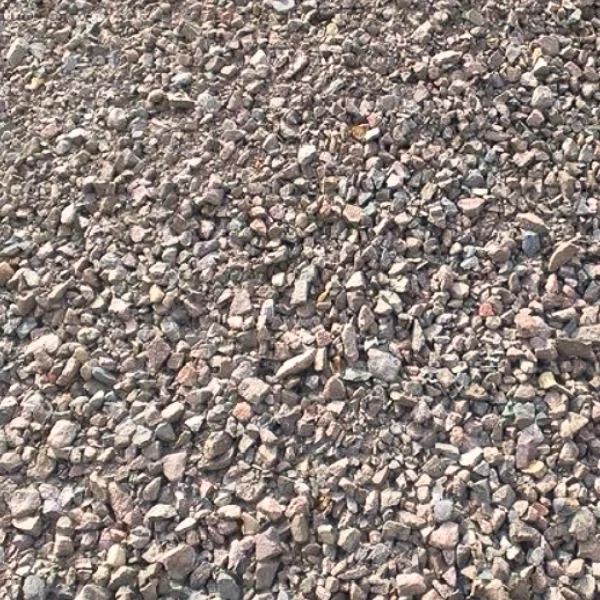

0-40mm MOT Type 1 Sub-Base

Type 1 MOT Sub Base is a crushed aggregate material graded from 40mm down to dust. It is produced from quarried rock or approved recycled sources. The grading complies with the Specification for Highway Works Clause 803.

The material compacts under mechanical effort to form a dense and stable layer. The fines content fills voids between larger particles. This creates high load distribution and resistance to movement under traffic.

It is widely used beneath domestic driveways and patios. It supports commercial yards and car parks. It also forms the structural foundation for roads and civil infrastructure.

Classification and Nomenclature

Type 1 MOT Sub Base is a UK recognised sub base classification. It is commonly referred to as MOT Type 1, Type 1 Sub Base, or DTp1. These terms describe the same well graded structural aggregate when produced to specification.

The material is defined within the Specification for Highway Works. It is used across highways, commercial, and domestic construction under consistent grading requirements.

Material Composition and Grading

Type 1 MOT Sub Base is a continuously graded aggregate designed for structural layers. The controlled particle distribution ensures consistent compaction and strength development.

• Crushed limestone, granite, or recycled concrete composition.

• 40mm to fines grading supports dense packing.

• Controlled fines content improves load transfer.

• Angular particles enhance interlock.

Fines Content and Binding Behaviour

Type 1 MOT Sub Base contains a controlled proportion of fines. These fines bind the aggregate during compaction. This creates a dense and load resistant structure. The fines content is intentional and specification controlled. It is not a drainage material.

• Fines fill voids to increase density.

• Binding action improves stiffness under load.

• Reduced movement after compaction.

• Distinct from open graded sub bases.

Compaction and Structural Performance

This material is designed to compact to a high density. Proper compaction creates a rigid platform for overlying layers.

• High compaction response under roller or plate.

• Dense matrix resists settlement.

• Structural stiffness spreads applied loads.

• Stable base limits surface deformation.

Drainage and Water Interaction

Type 1 MOT Sub Base has limited permeability once compacted. It is intended for structural support rather than free drainage.

• Reduced voids restrict water movement.

• Dense structure limits water ingress.

• Requires separate drainage where specified.

Load Bearing Capacity

When compacted correctly, this aggregate provides strong load bearing performance. It supports repeated traffic loading.

• High CBR performance when placed to specification.

• Suitable for vehicular traffic layers.

• Maintains strength under cyclic loading.

Compliance and Standards

Type 1 MOT Sub Base is defined by UK highway specifications. It is widely accepted across public and private works.

• Complies with SHW Clause 803.

• Aligned with BS EN 13242.

• Suitable for adoption subject to authority approval.

Consistency and Source Variation

Aggregate properties vary slightly by source. All supplied material meets the stated grading requirements.

• Natural colour variation may occur.

• Minor shape differences between quarries.

• Performance remains within specification limits.

Suitability and Usage Limitations

Suitable For

• Domestic driveways and paths.

• Patio and paving sub bases.

• Car parks and access roads.

• Industrial yards and loading areas.

• Road and highway foundation layers.

Not Suitable For

• Decorative surface finishes.

• Exposed drainage layers.

• Soakaways requiring free drainage.

• Applications without mechanical compaction.

• Fine levelling or bedding layers.

Application Suitability Reference

Compatibility With Overlying Materials

Type 1 MOT Sub Base is designed to support bound and unbound surfacing layers. Its compacted surface provides a stable platform for construction build-ups. It is commonly used beneath multiple surface types. Performance depends on correct placement and compaction.

• Suitable beneath block paving systems.

• Compatible with asphalt road layers.

• Supports in situ concrete slabs.

• Provides uniform load distribution to surfaces.

Performance Under Trafficked Loads

Type 1 MOT Sub Base is designed to perform under repeated vehicular loading. When compacted to specification, it forms a stiff and stable foundation layer. The well graded structure distributes imposed loads across the formation. This limits deformation under traffic.

• High resistance to rutting.

• Load spread reduces point stresses.

• Maintains stability under repeated loading.

• Suitable for light to heavy traffic conditions.

Supply Formats and Common Use

Type 1 MOT Sub Base is typically supplied as a loose bulk aggregate for use on construction and groundworks projects. Bulk delivery is suited to applications where larger volumes are required and mechanical placement and compaction are planned.

This material is most commonly used across domestic, commercial, and civil construction projects. It is selected for situations where a strong, load-bearing foundation layer is required beneath driveways, pavements, hardstandings, and road structures.

Bulk supply is widely used on driveways, car parks, industrial yards, and highway works due to efficiency and consistency. Bagged formats may be used for small-scale works, repairs, or restricted access locations, but bulk supply remains the standard choice for structural sub-base construction.

Limitations in High Water Table Conditions

Type 1 MOT Sub Base has low permeability once compacted. It is not designed to function as a drainage layer in saturated ground conditions. In areas with a high water table, additional drainage measures may be required. Performance depends on maintaining a stable and well drained formation.

• Not free draining when compacted.

• Water retention may reduce bearing performance.

• Separate drainage may be required.

• Ground conditions influence long term stability.
